Series W75 – Maintenance units

The W75 series consists of various maintenance units: Combi units, filters, activated carbon and submicron filters, pressure regulators, mist lubricators, start-up valves and matching accessories. By combining the individual components, complex systems with different air qualities and pressures can be created.

to product variants

medium compressed air
max. operating pressure BG0: 12 bar
BG1, 4 & 6: 16 bar
solenoid valves 10 bar
min. input pressure 1.5 bar
operationg temperature -10°C to +50°C
mounting position vertical
filter pore size 5 µm for filters / filterregulators
0.01 µm for sub micro filters
manometer included with pressure regulatores, combination devices and maintenance units
condensate drain semi-autimatic / automatic
flow rate at 6 bar see allocation for the individual articles
field of application typical pneumatic applications
Series W75 - Combi unit
Series W75 - Combi unit
10 articles
Series W75 - Maintenance unit - 2-piece
Series W75 - Maintenance unit - 2-piece
10 articles
Series W75 - Filter water separator
Series W75 - Filter water separator
10 articles
Series W75 - Pressure regulator
Series W75 - Pressure regulator
5 articles
Series W75 - Pressure regulator with continuous pressure supply
Series W75 - Pressure regulator with continuous pressure supply
4 articles
Series W75 - Mist oiler
Series W75 - Mist oiler
5 articles
W75 series - submicron and activated carbon filters
W75 series - submicron and activated carbon filters
15 articles
Series W75 - Adjustable starting valve
Series W75 - Adjustable starting valve
5 articles
W75 series - Solenoid valve
W75 series - Solenoid valve
10 articles
Series W75 - Ball valve
Series W75 - Ball valve
5 articles
Series W75 - Distributor
Series W75 - Distributor
5 articles

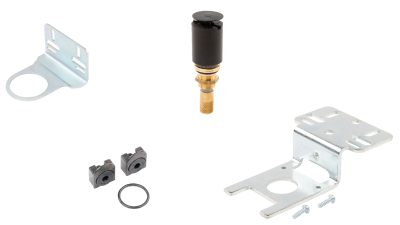

Series W75 - Accessories
Series W75 - Accessories
25 articles

Choose your Product Variant

Filter

Active Filters:

WKF-ZUB-KUP-0
17910107

Coupling set - size 0

WKF-ZUB-KUP-0
max. temperature: 50 min. temperature: -10 series: W75
Special Characteristics: Coupling set - size 0 for connecting several individual devices
Product Specific Download:
Catalogue

Price per piece

€2.73*

Available

WKF-ZUB-Schloss-1/4/6
17910145

Brass padlock 25mm

WKF-ZUB-Schloss-1/4/6
max. temperature: 50 min. temperature: -10 series: W75
Special Characteristics: Brass padlock 25mm with 3 keys
Product Specific Download:
Catalogue

Price per piece

€8.91*

Available

WKF-ZUB-KUP-1
17910401

Coupling set- size 1

WKF-ZUB-KUP-1
max. temperature: 50 min. temperature: -10 series: W75
Special Characteristics: Coupling set- size 1 For connecting several individual units
Product Specific Download:
Catalogue

Price per piece

€3.30*

Available

WKF-ZUB-KUP-4
17910836

Coupling set - size 4

WKF-ZUB-KUP-4
max. temperature: 50 min. temperature: -10 series: W75
Special Characteristics: Coupling set - size 4 for connecting several individual devices
Product Specific Download:
Catalogue

Price per piece

€4.95*

Available

WKF-ZUB-KUP-6
17910460

Coupling set - size 6

WKF-ZUB-KUP-6
max. temperature: 50 min. temperature: -10 series: W75
Special Characteristics: Coupling set - size 6 for connecting several individual devices
Product Specific Download:
Catalogue

Price per piece

€7.32*

Available

WKF-ZUB-MB-K/F-0
17910191

Metal container without sight glass

WKF-ZUB-MB-K/F-0
max. temperature: 50 min. temperature: -10 series: W75
Special Characteristics: Metal container without sight glass for combination units and filters suitabl…
Product Specific Download:
Catalogue

Price per piece

€28.54*

Available in 10 days, delivery time 1-3 days

WKF-ZUB-MBS-K/F-1
17910180

Metal container Viewing glass

WKF-ZUB-MBS-K/F-1
max. temperature: 50 min. temperature: -10 series: W75
Special Characteristics: Metal container Viewing glass for combination units and filters suitable for…
Product Specific Download:
Catalogue

Price per piece

€46.05*

Available in 10 days, delivery time 1-3 days

WKF-KH0-1/4
17910992

3/2-way ball valve - for size 0

WKF-KH0-1/4
flow gaseous media 6 bar Nl/min: 2600 max. operating pressure: 12 max. temperature: 50
Special Characteristics: 3/2-way ball valve - for size 0 Connection thread: 1/4" Flow rate: max. 2600…
Product Specific Download:
Catalogue   CAD

Price per piece

€38.63*

Available in 12 days, delivery time 1-3 days

WKF-ANe0-1/4
17910988

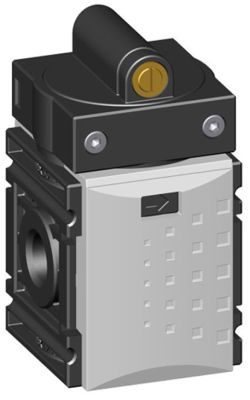

Start-up valve size 0

WKF-ANe0-1/4
flow gaseous media 6 bar Nl/min: 2000 max. operating pressure: 12 max. temperature: 50
Special Characteristics: Start-up valve size 0 Version: adjustable Connection thread: 1/4" Flow rate:…
Product Specific Download:
Catalogue   CAD

Price per piece

€65.00*

Available

WKF-VT0-1/4
17910328

Distributor size 0

WKF-VT0-1/4
flow gaseous media 6 bar Nl/min: 2700 max. operating pressure: 12 max. temperature: 50
Special Characteristics: Distributor size 0 Connection thread: 1/4" Pressure range: max.12 bar Mounti…
Product Specific Download:
Catalogue   CAD

Price per piece

€22.56*

Available in 10 days, delivery time 1-3 days

WKF-Ö0-1/4
17910301

Mist lubricator - size 0

WKF-Ö0-1/4
Volume oil reservoir: 35 ml flow gaseous media 6 bar Nl/min: 1400 max. operating pressure: 12
Special Characteristics: Mist lubricator - size 0 Connection thread: 1/4" Flow rate: max. 1400 Nl/min…
Product Specific Download:
Catalogue   CAD

Price per piece

€33.79*

Available

WKF-AKF0-1/4
17910332

Activated carbon filter - size 0

WKF-AKF0-1/4
flow gaseous media 6 bar Nl/min: 140 max. operating pressure: 12 max. temperature: 50
Special Characteristics: Activated carbon filter - size 0 Connection thread: 1/4" Flow rate: max. 140…
Product Specific Download:
Catalogue   CAD

Price per piece

€95.90*

Available

WKF-RP0-1/4-8-M
17910987

Pressure regulator size 0

WKF-RP0-1/4-8-M
Thread for panel-mounting nut: M30 x 1,5 flow gaseous media 6 bar Nl/min: 1000 max. operating pressure: 12
Special Characteristics: Pressure regulator size 0 with continuous P1 supply with integrated pressure…
Product Specific Download:
Catalogue   CAD

Price per piece

€46.35*

Available

WKF-ZUB-MBS-K/F-4
17910838

Metal container Viewing glass

WKF-ZUB-MBS-K/F-4
max. temperature: 50 min. temperature: -10 series: W75
Special Characteristics: Metal container Viewing glass for combination units and filters suitable for…
Product Specific Download:
Catalogue

Price per piece

€50.99*

Delivery date upon request

WKF-ZUB-MBS-K/F-6
17910218

Metal container Viewing glass

WKF-ZUB-MBS-K/F-6
max. temperature: 50 min. temperature: -10 series: W75
Special Characteristics: Metal container Viewing glass for combination units and filters suitable for…
Product Specific Download:
Catalogue

Price per piece

€75.61*

Available in 10 days, delivery time 1-3 days

WKF-ZUB-MB-Ö-0
17910977

Metal container

WKF-ZUB-MB-Ö-0
max. temperature: 50 min. temperature: -10 series: W75
Special Characteristics: Metal container for oiler size 0 Pressure range: max. 12 bar Temperature ran…
Product Specific Download:
Catalogue

Price per piece

€17.41*

Available in 10 days, delivery time 1-3 days

WKF-ZUB-MBS-Ö-1
17910183

Metal container for oiler with sight glass

WKF-ZUB-MBS-Ö-1
max. temperature: 50 min. temperature: -10 series: W75
Special Characteristics: Metal container for oiler with sight glass for oiler size 1 Pressure range: m…
Product Specific Download:
Catalogue

Price per piece

€46.05*

Available in 10 days, delivery time 1-3 days

WKF-ZUB-MBS-Ö-4
17910839

Metal container with sight glass

WKF-ZUB-MBS-Ö-4
max. temperature: 50 min. temperature: -10 series: W75
Special Characteristics: Metal container with sight glass for oiler size 4 Pressure range: max. 16 bar…
Product Specific Download:
Catalogue

Price per piece

€52.02*

Available in 10 days, delivery time 1-3 days

WKF-ZUB-MBS-Ö-6
17910978

Metal container with sight glass

WKF-ZUB-MBS-Ö-6
max. temperature: 50 min. temperature: -10 series: W75
Special Characteristics: Metal container with sight glass for oiler size 6 Pressure range: max. 16 bar…
Product Specific Download:
Catalogue

Price per piece

€75.61*

Available in 10 days, delivery time 1-3 days

WKF-ANe1-1/4
17910337

Start-up valve size 1

WKF-ANe1-1/4
flow gaseous media 6 bar Nl/min: 2000 max. temperature: 50 min. temperature: -10
Special Characteristics: Start-up valve size 1 Version: adjustable Connection thread: 1/4" Flow rate: m…
Product Specific Download:
Catalogue   CAD

Price per piece

€72.00*

Available
