Series B40 - Push-in fittings

B40 is our stainless steel series that can be used with plastic tubing for compressed air, gases as well as rough vacuum. The push-in fittings can safely withstand even an operating pressure of up to 15 bar over the wide operating temperature range from -20 to +150°C. All designs in the series have a small cross-sectional constriction compared to the internal diameter of the plastic tubing. The quick assembly and disassembly also reduces costs.
to product variants
Technical Data
[{"K_Techdat1":"material","K_Techdat2":"housing made of stainless steel","K_Techdat3":"","K_Techdat4":"","K_Techdat5":"","K_Techdat6":""},{"K_Techdat1":"thread","K_Techdat2":"metric thread\nBSP-thread\nconical","K_Techdat3":"","K_Techdat4":"","K_Techdat5":"","K_Techdat6":""},{"K_Techdat1":"operating pressure","K_Techdat2":"max. 15 bar, also applicable with vacuum","K_Techdat3":"","K_Techdat4":"","K_Techdat5":"","K_Techdat6":""},{"K_Techdat1":"temperature","K_Techdat2":"-20°C up to +150°C","K_Techdat3":"","K_Techdat4":"","K_Techdat5":"","K_Techdat6":""},{"K_Techdat1":"sealing surface","K_Techdat2":"O-ring made of FKM","K_Techdat3":"","K_Techdat4":"","K_Techdat5":"","K_Techdat6":""},{"K_Techdat1":"hose material","K_Techdat2":"PU = polyurethane\nPA = polyamide","K_Techdat3":"","K_Techdat4":"","K_Techdat5":"","K_Techdat6":""},{"K_Techdat1":"hose outside Ø","K_Techdat2":"4 mm - 12 mm","K_Techdat3":"","K_Techdat4":"","K_Techdat5":"","K_Techdat6":""},{"K_Techdat1":"medium","K_Techdat2":"compressed air, gases and rough vacuum.\nPay attention to the chemical resistance of the materials used.","K_Techdat3":"","K_Techdat4":"","K_Techdat5":"","K_Techdat6":""},{"K_Techdat1":"field of application","K_Techdat2":"typical pneumatic applications","K_Techdat3":"","K_Techdat4":"","K_Techdat5":"","K_Techdat6":""}]
BS-GE-VA - Gerade Einschraubverschraubung
BS-GE-VA - Gerade Einschraubverschraubung
9 articles
BS-GEk-VA - Gerade Einschraubverschraubung
BS-GEk-VA - Gerade Einschraubverschraubung
10 articles
BS-WEk-VA - Winkel-Einschraubverschraubung
BS-WEk-VA - Winkel-Einschraubverschraubung
10 articles
BS-WEdk-VA - Winkel-Einschraubverschraubung
BS-WEdk-VA - Winkel-Einschraubverschraubung
11 articles
BS-WEd-VA - Winkel-Einschraubverschraubung
BS-WEd-VA - Winkel-Einschraubverschraubung
10 articles
BS-TEk-VA - T-Einschraubverschraubung
BS-TEk-VA - T-Einschraubverschraubung
10 articles
BS-TEdk-VA - T-Einschraubverschraubung
BS-TEdk-VA - T-Einschraubverschraubung
9 articles
BS-TEd-VA - T-Einschraubverschraubung
BS-TEd-VA - T-Einschraubverschraubung
5 articles
BS-GSV-VA - Gerader Schottverbinder
BS-GSV-VA - Gerader Schottverbinder
5 articles
BS-GV-VA - Gerader Verbinder
BS-GV-VA - Gerader Verbinder
5 articles
BS-WV-VA - Winkel-Verbinder
BS-WV-VA - Winkel-Verbinder
5 articles
BS-TV-VA - T-Verbinder
BS-TV-VA - T-Verbinder
5 articles
BS-GRZ-VA - Gerader Reduzierstecker
BS-GRZ-VA - Gerader Reduzierstecker
7 articles

Choose your Product Variant

Filter

Active Filters:

BS-GV-4-VA
03079015

Gerader Verbinder, Edelstahl

BS-GV-4-VA
hose dimension: 4/2.7, 4/2.5, 4/2 material: stainless steel max. operating pressure: 15
Special Characteristics: Gerader Verbinder, Edelstahl Schlauch-Ø: 4 mm
Product Specific Download:
Katalog

Price per piece

€15.96*

Available, delivery time: 1-3 days

BS-TV-4-VA
03403020

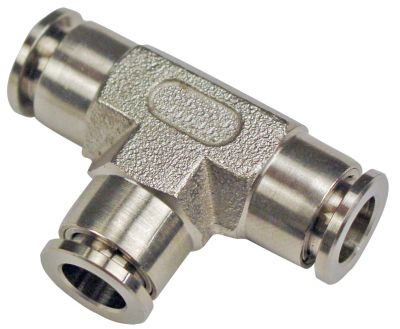

T-Verbinder, Edelstahl

BS-TV-4-VA
hose dimension: 4/2.7, 4/2.5, 4/2 material: stainless steel max. operating pressure: 15
Special Characteristics: T-Verbinder, Edelstahl Schlauch-Ø: 4 mm
Product Specific Download:
Katalog

Price per piece

€27.67*

Delivery date upon request

BS-WV-4-VA
03218520

Winkel-Verbinder, Edelstahl

BS-WV-4-VA
hose dimension: 4/2.7, 4/2.5, 4/2 material: stainless steel max. operating pressure: 15
Special Characteristics: Winkel-Verbinder, Edelstahl Schlauch-Ø: 4 mm
Product Specific Download:
Katalog

Price per piece

€21.41*

Available, delivery time: 1-3 days

BS-GSV-4-VA
03100010

Gerader Schottverbinder, Edelstahl

BS-GSV-4-VA
hose dimension: 4/2.7, 4/2.5, 4/2 material: stainless steel max. operating pressure: 15
Special Characteristics: Gerader Schottverbinder, Edelstahl Schlauch-Ø: 4 mm Schott-Gewinde: M11x0,75
Product Specific Download:
Katalog

Price per piece

€39.88*

Available, delivery time: 1-3 days

BS-GSV-6-VA
03100011

Gerader Schottverbinder, Edelstahl

BS-GSV-6-VA
hose dimension: 6/3.6, 6/4 material: stainless steel max. operating pressure: 15
Special Characteristics: Gerader Schottverbinder, Edelstahl Schlauch-Ø: 6 mm Schott-Gewinde: M14x1
Product Specific Download:
Katalog

Price per piece

€26.54*

Available, delivery time: 1-3 days

BS-GSV-8-VA
03100012

Gerader Schottverbinder, Edelstahl

BS-GSV-8-VA
hose dimension: 8/6, 8/5, 8/5.5 material: stainless steel max. operating pressure: 15
Special Characteristics: Gerader Schottverbinder, Edelstahl Schlauch-Ø: 8 mm Schott-Gewinde: M16x1,25
Product Specific Download:
Katalog

Price per piece

€32.31*

Available, delivery time: 1-3 days

BS-TV-10-VA
03403023

T-Verbinder, Edelstahl

BS-TV-10-VA
hose dimension: 10/4, 10/8, 10/7, 10/6.5 material: stainless steel max. operating pressure: 15
Special Characteristics: T-Verbinder, Edelstahl Schlauch-Ø: 10 mm
Product Specific Download:
Katalog

Price per piece

€47.85*

Available, delivery time: 1-3 days

BS-GSV-10-VA
03100013

Gerader Schottverbinder, Edelstahl

BS-GSV-10-VA
hose dimension: 10/4, 10/8, 10/7, 10/6.5 material: stainless steel max. operating pressure: 15
Special Characteristics: Gerader Schottverbinder, Edelstahl Schlauch-Ø: 10 mm Schott-Gewinde: M18x1
Product Specific Download:
Katalog

Price per piece

€48.59*

Available, delivery time: 1-3 days

BS-GSV-12-VA
03100014

Gerader Schottverbinder, Edelstahl

BS-GSV-12-VA
hose dimension: 12/8, 12/9, 12/6, 12/10 material: stainless steel max. operating pressure: 15
Special Characteristics: Gerader Schottverbinder, Edelstahl Schlauch-Ø: 12 mm Schott-Gewinde: M22x1,5
Product Specific Download:
Katalog

Price per piece

€64.82*

Available, delivery time: 1-3 days

BS-TV-12-VA
03403024

T-Verbinder, Edelstahl

BS-TV-12-VA
hose dimension: 12/8, 12/9, 12/6, 12/10 material: stainless steel max. operating pressure: 15
Special Characteristics: T-Verbinder, Edelstahl Schlauch-Ø: 12 mm
Product Specific Download:
Katalog

Price per piece

€81.42*

Available, delivery time: 1-3 days

BS-GRZ-6-4-VA
03044025

Gerader Reduzierstecker Edelstahl

BS-GRZ-6-4-VA
material: stainless steel max. operating pressure: 15 max. temperature: 150
Special Characteristics: Gerader Reduzierstecker Edelstahl Stecker-Ø: 6 mm Schlauch-Ø: 4 mm
Product Specific Download:
Katalog

Price per piece

€15.34*

Delivery date upon request

BS-GRZ-8-4-VA
03044026

Gerader Reduzierstecker Edelstahl

BS-GRZ-8-4-VA
hose dimension: 8/6, 8/5, 8/5.5 material: stainless steel max. operating pressure: 15
Special Characteristics: Gerader Reduzierstecker Edelstahl Stecker-Ø: 8 mm Schlauch-Ø: 4 mm
Product Specific Download:
Katalog

Price per piece

€18.48*

Delivery date upon request

BS-WEd-4-M5-VA
03218056

Winkeleinschraubverschraubung. Dichtung: FKM

BS-WEd-4-M5-VA
hose dimension: 4/2.7, 4/2.5, 4/2 material: stainless steel max. operating pressure: 15
Special Characteristics: Winkeleinschraubverschraubung. Dichtung: FKM Material: Edelstahl Schlauch-Ø: 4…
Product Specific Download:
Katalog

Price per piece

€36.15*

Available, delivery time: 1-3 days

BS-GE-4-1/8-VA
03015065

Gerade Einschraubverschraubung Edelstahl O-Ring aus FKM

BS-GE-4-1/8-VA
hose dimension: 4/2.7, 4/2.5, 4/2 material: stainless steel max. operating pressure: 15
Special Characteristics: Gerade Einschraubverschraubung Edelstahl O-Ring aus FKM Schlauch-Ø: 4 mm Gewind…
Product Specific Download:
Katalog

Price per piece

€13.16*

Available, delivery time: 1-3 days

BS-WEdk-4-1/8-VA
03218430

W-Einschr-Verschrbg, konisch, drehbar Edelstahl

BS-WEdk-4-1/8-VA
hose dimension: 4/2.7, 4/2.5, 4/2 material: stainless steel max. operating pressure: 15
Special Characteristics: W-Einschr-Verschrbg, konisch, drehbar Edelstahl Schlauch-Ø: 4 mm Gewinde: 1/8''
Product Specific Download:
Katalog

Price per piece

€26.50*

Delivery date upon request

BS-TEdk-4-1/8-VA
03020090

T-Einschraubverschraubung, drehbar, konisch, Edelstahl

BS-TEdk-4-1/8-VA
hose dimension: 4/2.7, 4/2.5, 4/2 material: stainless steel max. operating pressure: 15
Special Characteristics: T-Einschraubverschraubung, drehbar, konisch, Edelstahl Schlauch-Ø: 4 mm Gewinde…
Product Specific Download:
Katalog

Price per piece

€37.55*

Available, delivery time: 1-3 days

BS-GEk-4-1/8-VA
03015075

Gerade Einschraubverschraubung konisch, Edelstahl

BS-GEk-4-1/8-VA
hose dimension: 4/2.7, 4/2.5, 4/2 material: stainless steel max. operating pressure: 15
Special Characteristics: Gerade Einschraubverschraubung konisch, Edelstahl Schlauch-Ø: 4 mm Gewinde: 1/8…
Product Specific Download:
Katalog

Price per piece

€11.38*

Delivery date upon request

BS-TEk-4-1/8-VA
03020075

T-Einschraubverschraubung, konisch, Edelstahl

BS-TEk-4-1/8-VA
hose dimension: 4/2.7, 4/2.5, 4/2 material: stainless steel max. operating pressure: 15
Special Characteristics: T-Einschraubverschraubung, konisch, Edelstahl Schlauch-Ø: 4 mm Gewinde: 1/8''
Product Specific Download:
Katalog

Price per piece

€33.56*

Delivery date upon request

BS-TEd-4-1/8-VA
03020105

T-Einschraubverschraubung, drehbar, Edelstahl

BS-TEd-4-1/8-VA
hose dimension: 4/2.7, 4/2.5, 4/2 material: stainless steel max. operating pressure: 15
Special Characteristics: T-Einschraubverschraubung, drehbar, Edelstahl Schlauch-Ø: 4 mm Gewinde: 1/8''
Product Specific Download:
Katalog

Price per piece

€39.19*

Available, delivery time: 1-3 days

BS-WEk-4-1/8-VA
03218410

W-Einschr-Verschrbg, konisch, Edelstahl

BS-WEk-4-1/8-VA
hose dimension: 4/2.7, 4/2.5, 4/2 material: stainless steel max. operating pressure: 15
Special Characteristics: W-Einschr-Verschrbg, konisch, Edelstahl Schlauch-Ø: 4 mm Gewinde: 1/8''
Product Specific Download:
Katalog

Price per piece

€25.23*

Available, delivery time: 1-3 days
