Series B50 - Connectors

Our "black series" B50 is applicable to a wide range of metal or plastic pipes. It is available for a diameter range from 15 to 28 mm and is suitable for compressed air, gases, vacuum as well as liquids. The push-in connections have very good flow properties. Due to the integrated O-ring seal on the thread, no additional sealing material is required. Another advantage of this series: loosening and fastening is possible several times, because by pressing on the loosening ring, the retaining element is pushed back and the connection is easily and quickly released.

to product variants

material	plastic POM
seal	EPDM
thread	BSP BSPT
operating pressure	0 bar up to 11 bar
temperature	1°C up to 20°C at up to 11 bar operating pressure 65°C up to 7 bar operating pressure
sealing surface	cylindrical type is mounted with O-ring sealing
pipe material	PU = polyurethane PA = polyamide PE = polyethylene soft pipes made of brass copper or aluminium corresponding to the tolerances
pipe tolerances	+0.05 mm / -0.1 mm
pipe outside Ø	15 mm - 28 mm
medium	Compressed air, gases, vacuum, liquids. Pay attention to the chemical resistance of the materials used.
field of application	typical pneumatic applications

BG-TVr-KU - T-connector reduced

2 articles

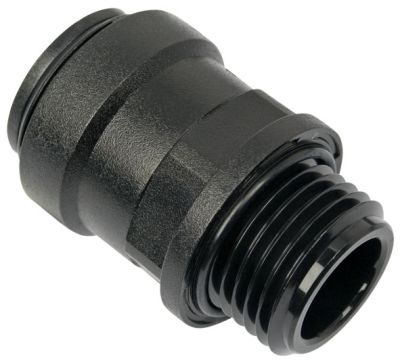

BG-GE-KU - Straight screw-in fitting

3 articles

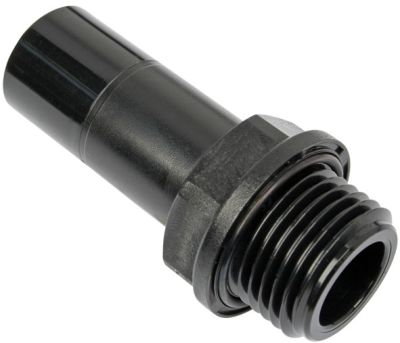

BG-GES-KU - Straight screw in stem

5 articles

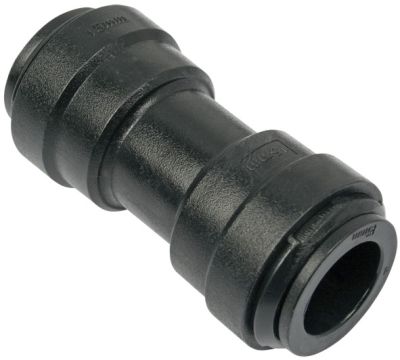

BG-GV-KU - Straight connector

4 articles

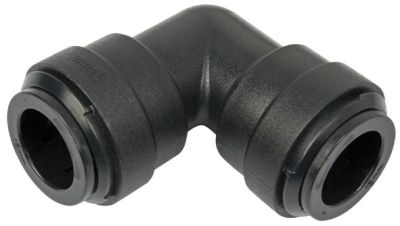

BG-WV-KU - Elbow-connector

4 articles

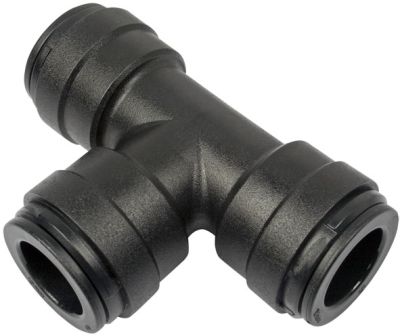

BG-TV-KU - T-connector

4 articles

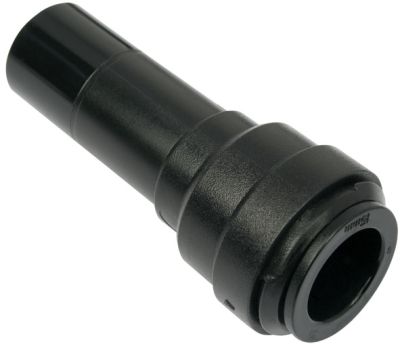

BG-GRZ-KU - Straight reducing stem

5 articles

BG-TWA-KU - Water trap

1 articles

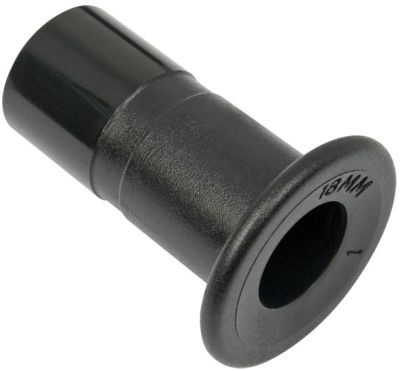

BG-VS-KU - Locking plug

3 articles

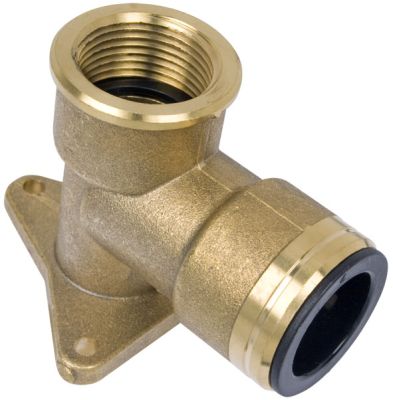

BG-WD-MS - Wall fitting

2 articles

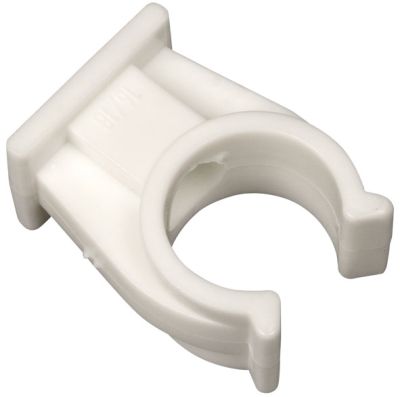

BG-RK-KU - Pipe clamp

4 articles

B-SC-KU locking clips

1 articles

03070299

Locking clip

B-SC-18-KU-gr

colour: grey

Special Characteristics: Locking clip for screw connections and connectors Colour grey

Price per piece

€0.54*

Subscription

Available, delivery time: 1-3 days

pcs

03070233

Pipe clamp

BG-RK-15-KU

material: plastic max. operating pressure: 10 outside Ø (hose/pipe/connection): 15 mm

Special Characteristics: Pipe clamp Spigot outer Ø: 15 mm

Product Specific Download:
Catalogue

Price per piece

€2.03*

Subscription

Ready to ship in 5 day(s)

pcs

03070232

Straight joint

BG-GV-15-KU

material: plastic max. operating pressure: 10 outside Ø (hose/pipe/connection): 15 mm

Special Characteristics: Straight joint hose outter-Ø: 15 mm

Product Specific Download:
Catalogue

Price per piece

€6.64*

Subscription

Ready to ship in 7 day(s)

pcs

03070235

Locking plug

BG-VS-15-KU

material: plastic max. operating pressure: 10 outside Ø (hose/pipe/connection): 15 mm

Special Characteristics: Locking plug Outer Ø of connector: 15 mm

Product Specific Download:
Catalogue

Price per piece

€2.76*

Subscription

Ready to ship in 14 day(s)

pcs

03070234

T-connector

BG-TV-15-KU

material: plastic max. operating pressure: 10 outside Ø (hose/pipe/connection): 15 mm

Special Characteristics: T-connector pipe outer Ø: 15 mm

Product Specific Download:
Catalogue

Price per piece

€13.30*

Subscription

Ready to ship in 14 day(s)

pcs

03070236

Elbow connector

BG-WV-15-KU

material: plastic max. operating pressure: 10 outside Ø (hose/pipe/connection): 15 mm

Special Characteristics: Elbow connector pipe outer Ø: 15 mm

Product Specific Download:
Catalogue

Price per piece

€10.46*

Subscription

Available, delivery time: 1-3 days

pcs

03070205

Straight joint

BG-GV-18-KU

material: plastic max. operating pressure: 10 outside Ø (hose/pipe/connection): 18 mm

Special Characteristics: Straight joint hose outter-Ø: 18 mm

Product Specific Download:
Catalogue

Price per piece

€9.51*

Subscription

Available, delivery time: 1-3 days

pcs

03070221
