Series B20 - Push-in fittings

Low cross-sectional constriction, high pressure range, O-ring sealing and stainless steel collet: our B20 series can do it all. The nickel-plated brass push-in fittings not only offer high-quality surface protection, but are also available in various special designs - whether NSF-compliant, high-pressure or high-temperature up to +130°C and even +185°C for a short time, we make it possible.
to product variants
Technical Data
[{"K_Techdat1":"thread","K_Techdat2":"metric ISO\/R 262\nBSP parallel UNI-ISO228 with O-ring","K_Techdat3":"","K_Techdat4":"","K_Techdat5":"","K_Techdat6":""},{"K_Techdat1":"operating pressure","K_Techdat2":"Ø 4 mm up to 10 mm max. 16 bar\nØ 12 mm up to 14 mm max. 12 bar, at 20°C\nvacuum up to 99%","K_Techdat3":"","K_Techdat4":"","K_Techdat5":"","K_Techdat6":""},{"K_Techdat1":"temperature","K_Techdat2":"-20 °C up to + 70°C","K_Techdat3":"","K_Techdat4":"","K_Techdat5":"","K_Techdat6":""},{"K_Techdat1":"sealing surface","K_Techdat2":"cylindrical type with implanted O-ring in the housing","K_Techdat3":"","K_Techdat4":"","K_Techdat5":"","K_Techdat6":""},{"K_Techdat1":"hose material","K_Techdat2":"PU = polyurethane outside diameter calibrated\nPA = polyamide outside diameter calibrated\nPE = polyethylene outside diameter calibrated","K_Techdat3":"","K_Techdat4":"","K_Techdat5":"","K_Techdat6":""},{"K_Techdat1":"hose outside Ø","K_Techdat2":"4 mm up to 14 mm","K_Techdat3":"","K_Techdat4":"","K_Techdat5":"","K_Techdat6":""},{"K_Techdat1":"tolerance","K_Techdat2":"+\/- 0,10 mm","K_Techdat3":"","K_Techdat4":"","K_Techdat5":"","K_Techdat6":""},{"K_Techdat1":"medium","K_Techdat2":"compressed air\n(other fluids on request)","K_Techdat3":"","K_Techdat4":"","K_Techdat5":"","K_Techdat6":""},{"K_Techdat1":"field of application","K_Techdat2":"typical pneumatic applications","K_Techdat3":"","K_Techdat4":"","K_Techdat5":"","K_Techdat6":""}]

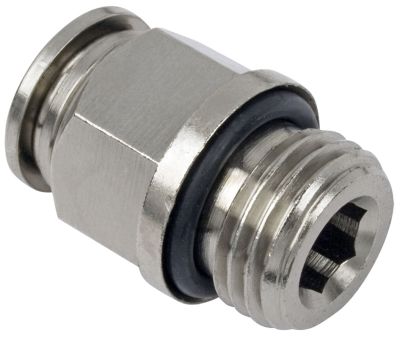

BK-GE-MSv - Gerade Einschraubverschraubung
BK-GE-MSv - Gerade Einschraubverschraubung
23 articles

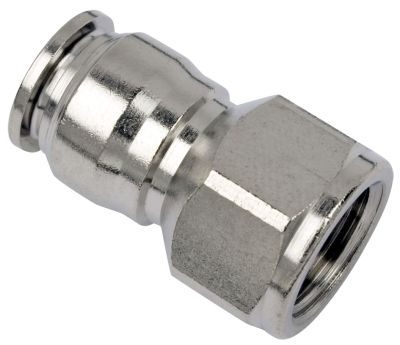

BK-GA-MSv - Gerade Aufschraubverschraubung
BK-GA-MSv - Gerade Aufschraubverschraubung
14 articles

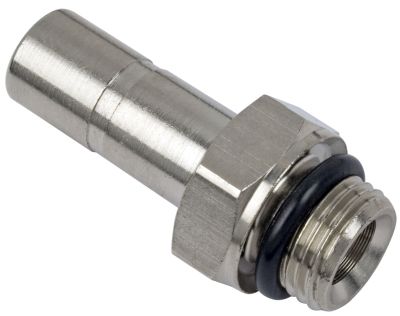

B-GES-MSv - Gerader Einschraubstecker
B-GES-MSv - Gerader Einschraubstecker
16 articles

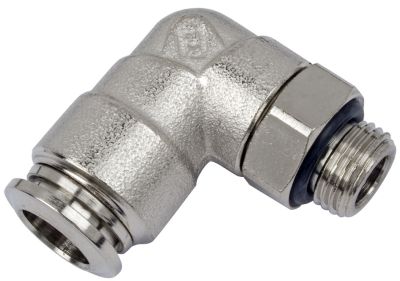

BK-WEd-MSv - Winkel-Einschraubverschraubung
BK-WEd-MSv - Winkel-Einschraubverschraubung
22 articles

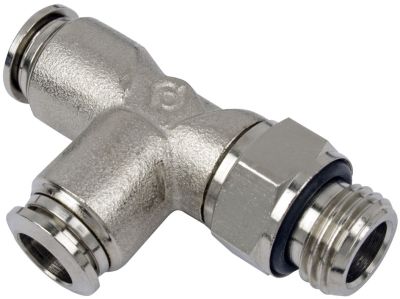

BK-LEd-MSv - L-Einschraubverschraubung
BK-LEd-MSv - L-Einschraubverschraubung
14 articles

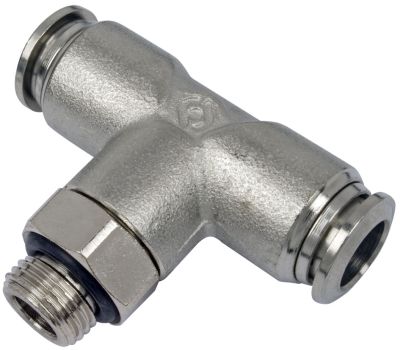

BK-TEd-MSv - T-Einschraubverschraubung
BK-TEd-MSv - T-Einschraubverschraubung
17 articles

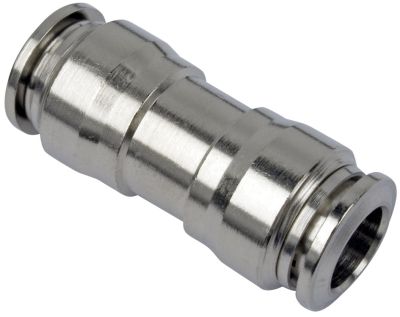

BK-GV-MSv - Gerader Verbinder
BK-GV-MSv - Gerader Verbinder
7 articles

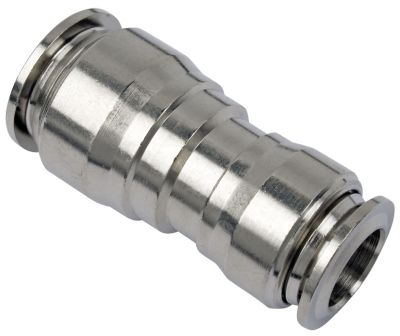

BK-GVr-MSv - Gerader Verbinder
BK-GVr-MSv - Gerader Verbinder
4 articles

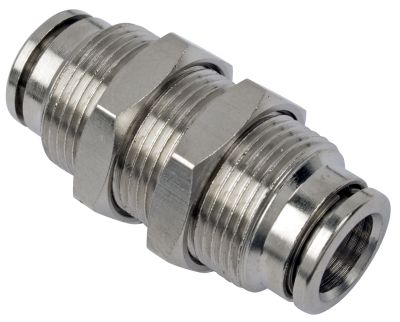

BK-GSV-MSv - Gerader Schott-Verbinder
BK-GSV-MSv - Gerader Schott-Verbinder
7 articles
BK-WV-MSv - Winkel-Verbinder
BK-WV-MSv - Winkel-Verbinder
7 articles

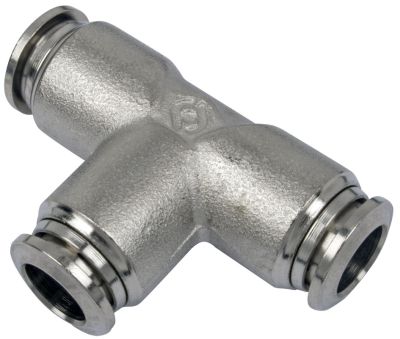

BK-TV-MSv - T-Verbinder
BK-TV-MSv - T-Verbinder
8 articles

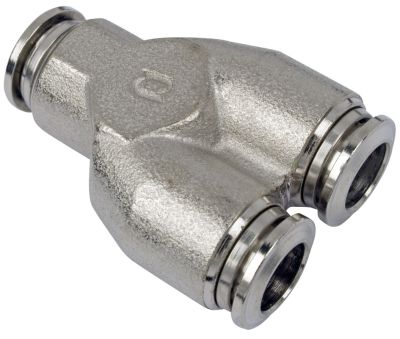

BK-YV-MSv - Y-Verbinder
BK-YV-MSv - Y-Verbinder
5 articles

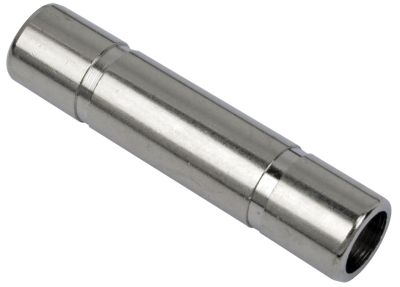

BK-GDS-MSv - Gerader Doppelstecker
BK-GDS-MSv - Gerader Doppelstecker
7 articles

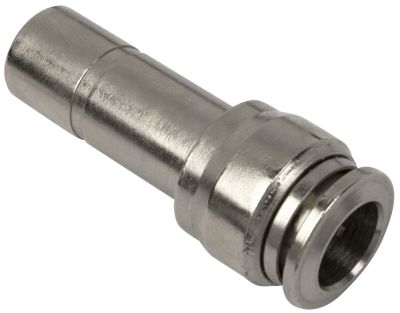

BK-GRZ-MSv - Gerader Reduzierstecker
BK-GRZ-MSv - Gerader Reduzierstecker
11 articles

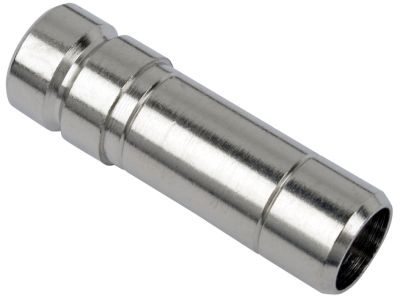

BK-VS-MSv - Verschlussstecker
BK-VS-MSv - Verschlussstecker
7 articles

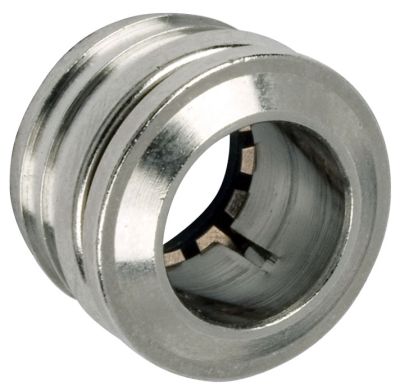

BK-epp-MSv - Einpress-Patrone
BK-epp-MSv - Einpress-Patrone
6 articles

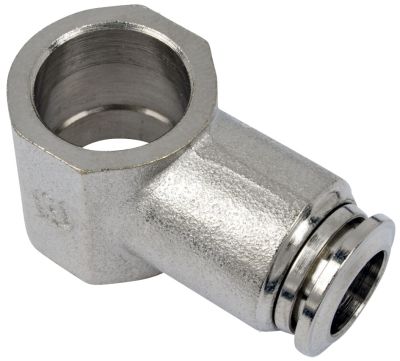

BK-WS-MSv - Winkel-Schwenkringstück
BK-WS-MSv - Winkel-Schwenkringstück
15 articles

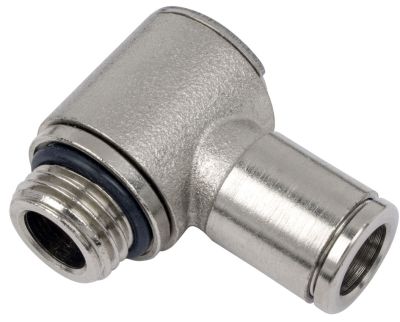

BK-WSh-MSv - Winkel-Schwenkverschraubung
BK-WSh-MSv - Winkel-Schwenkverschraubung
13 articles

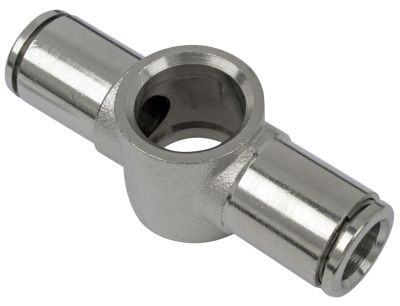

BK-TS-MSv - T-Schwenkringstück
BK-TS-MSv - T-Schwenkringstück
7 articles

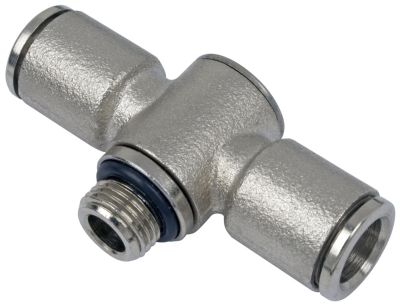

BK-TSh-MSv - T-Schwenkverschraubung
BK-TSh-MSv - T-Schwenkverschraubung
8 articles

Choose your Product Variant

Filter

Active Filters:

BK-GV-4-MSv
03060607
BK-GV-4-MSv
hose dimension: 4/2.7, 4/2.5, 4/2 material: brass nickel-plated max. operating pressure: 15
Special Characteristics: straight connector hose-Ø: 4 mm
Product Specific Download:

Price per piece

€3.06*

Available, delivery time: 1-3 days

BK-TV-4-MSv
03060507
BK-TV-4-MSv
hose dimension: 4/2.7, 4/2.5, 4/2 material: brass nickel-plated max. operating pressure: 15
Special Characteristics: T-connector hose-Ø: 4 mm
Product Specific Download:

Price per piece

€4.61*

Available, delivery time: 1-3 days

BK-VS-4-MSv
03910400
BK-VS-4-MSv
material: brass nickel-plated max. operating pressure: 15 max. temperature: 70
Special Characteristics: Gerader Verschluss-Stecker

Price per piece

€0.82*

Available, delivery time: 1-3 days

BK-GDS-4-MSv
03050100
BK-GDS-4-MSv
material: brass nickel-plated max. operating pressure: 15 max. temperature: 70
Special Characteristics: Gerader Doppelstecker Steckanschluss-Ø: 4 mm
Product Specific Download:

Price per piece

€0.82*

Available, delivery time: 1-3 days

BK-WV-4-MSv
03060407
BK-WV-4-MSv
hose dimension: 4/2.7, 4/2.5, 4/2 material: brass nickel-plated max. operating pressure: 15
Special Characteristics: Winkel Verbinder Schlauch-Ø: 4 mm
Product Specific Download:

Price per piece

€3.38*

Available, delivery time: 1-3 days

BK-EPP-4-MSv
03900100
BK-EPP-4-MSv
hose dimension: 4/2.7, 4/2.5, 4/2 material: brass nickel-plated max. operating pressure: 15
Special Characteristics: Einpresspatrone SchlauchØ: 4 mm
Product Specific Download:

Price per piece

€1.24*

Available, delivery time: 1-3 days

BK-GSV-4-MSv
03060307
BK-GSV-4-MSv
hose dimension: 4/2.7, 4/2.5, 4/2 material: brass nickel-plated max. operating pressure: 15
Special Characteristics: Gerader Schott Verbinder Schlauch-Ø: 4 mm Schott-Gewinde: M12x1
Product Specific Download:

Price per piece

€4.65*

Delivery date upon request

BK-TV-5-MSv
03060508
BK-TV-5-MSv
material: brass nickel-plated max. operating pressure: 15 max. temperature: 70
Special Characteristics: T-Verbinder Schlauch-Ø: 5 mm
Product Specific Download:

Price per piece

€5.16*

Available, delivery time: 1-3 days

BK-GDS-5-MSv
03050101
BK-GDS-5-MSv
material: brass nickel-plated max. operating pressure: 15 max. temperature: 70
Special Characteristics: Gerader Doppelstecker Steckanschluss-Ø: 5 mm
Product Specific Download:

Price per piece

€0.83*

Available, delivery time: 1-3 days

BK-VS-5-MSv
03910401
BK-VS-5-MSv
material: brass nickel-plated max. operating pressure: 15 max. temperature: 70
Special Characteristics: Gerader Verschluss-Stecker Steckanschluss-Ø: 5 mm
Product Specific Download:

Price per piece

€2.52*

Available in 2 days, delivery time 1-3 days

BK-EPP-5-MSv
03900105
BK-EPP-5-MSv
material: brass nickel-plated max. operating pressure: 15 max. temperature: 70
Special Characteristics: Einpresspatrone SchlauchØ: 5 mm
Product Specific Download:

Price per piece

€1.62*

Available, delivery time: 1-3 days

BK-GSV-5-MSv
03060308
BK-GSV-5-MSv
material: brass nickel-plated max. operating pressure: 15 max. temperature: 70
Special Characteristics: Gerader Schott Verbinder Schlauch-Ø: 5 mm Schott-Gewinde: M14x1
Product Specific Download:

Price per piece

€5.18*

Available, delivery time: 1-3 days

BK-WV-5-MSv
03060408
BK-WV-5-MSv
material: brass nickel-plated max. operating pressure: 15 max. temperature: 70
Special Characteristics: Winkel Verbinder Schlauch-Ø: 5 mm
Product Specific Download:

Price per piece

€3.41*

Available, delivery time: 1-3 days

BK-GV-5-MSv
03060608
BK-GV-5-MSv
material: brass nickel-plated max. operating pressure: 15 max. temperature: 70
Special Characteristics: Gerader Verbinder Schlauch-Ø: 5 mm
Product Specific Download:

Price per piece

€3.10*

Available, delivery time: 1-3 days

BK-EPP-6-MSv
03900101
BK-EPP-6-MSv
hose dimension: 6/3.6, 6/4 material: brass nickel-plated max. operating pressure: 15
Special Characteristics: Einpresspatrone SchlauchØ: 6 mm
Product Specific Download:

Price per piece

€1.67*

Available, delivery time: 1-3 days

BK-TV-6-MSv
03060509
BK-TV-6-MSv
hose dimension: 6/3.6, 6/4 material: brass nickel-plated max. operating pressure: 15
Special Characteristics: T-connector hose-Ø: 6 mm
Product Specific Download:

Price per piece

€4.93*

Available, delivery time: 1-3 days

BK-VS-6-MSv
03910402
BK-VS-6-MSv
material: brass nickel-plated max. operating pressure: 15 max. temperature: 70
Special Characteristics: Gerader Verschluss-Stecker Steckanschluss-Ø: 6 mm
Product Specific Download:

Price per piece

€1.28*

Available, delivery time: 1-3 days

BK-WV-6-MSv
03060409
BK-WV-6-MSv
hose dimension: 6/3.6, 6/4 material: brass nickel-plated max. operating pressure: 15
Special Characteristics: Elbow connector Hose outerØ 6mm
Product Specific Download:

Price per piece

€3.41*

Available, delivery time: 1-3 days

BK-TV-6-MSv-FKM
03060520
BK-TV-6-MSv-FKM
hose dimension: 6/3.6, 6/4 material: brass nickel-plated max. operating pressure: 15
Special Characteristics: T-Verbinder Dichtung FKM Schlauch-Ø: 6 mm

Price per piece

€7.79*

Available, delivery time: 1-3 days

BK-GV-6-MSv
03060609
BK-GV-6-MSv
hose dimension: 6/3.6, 6/4 material: brass nickel-plated max. operating pressure: 15
Special Characteristics: straight connector hose-Ø: 6 mm
Product Specific Download:

Price per piece

€3.09*

Available, delivery time: 1-3 days
