Series SZ - Short-stroke cylinders

The short-stroke cylinders of our SZ series are manufactured in diameters from 12 to 100 mm. Their standard temperature range is -10 °C to +70 °C. Possible fields of application are all typical pneumatic applications. Depending on the requirements, Timmer offers the cylinders with contactless position sensing, single-acting and double-acting as well as with through piston rod.
to product variants

medium Filtered, lubricated or unlubricated compressed air
operating pressure max. 10 bar
temperature -10°C up to +70°C
installation position any
mounting method 2-4 screws depending on cylinder (not included)
field of application typical pneumatic applications

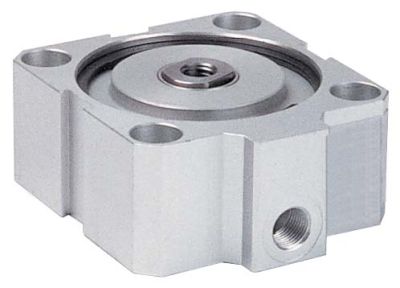

ZHO-SZK3 - single acting
ZHO-SZK3 - single acting
4 articles

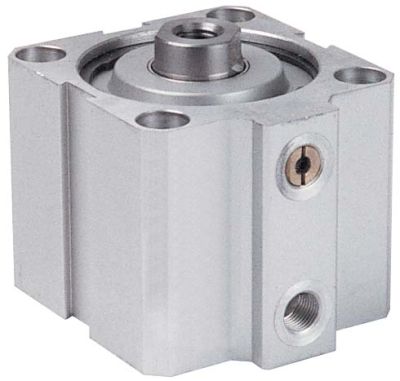

ZHO-SZ7 - single acting- contactless position detection
ZHO-SZ7 - single acting- contactless position detection
25 articles

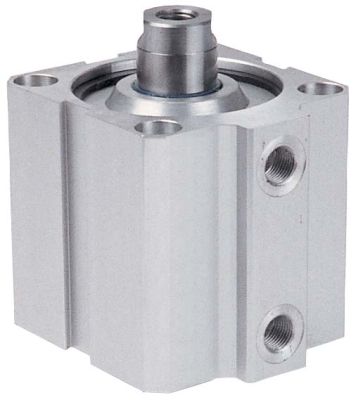

ZHO-SZ6 SZD6 - double acting- contactless position detection
ZHO-SZ6 SZD6 - double acting- contactless position detection
39 articles
magnet switches
magnet switches
10 articles

Choose your Product Variant

Filter

Active Filters:

ZHO-SZ7040/5
PA59070-0005

Short-stroke cylinder, single-acting - Non-contact position sensing - Piston rod retracted

ZHO-SZ7040/5
piston rod thread: M8 piston rod Ø: 16 piston Ø: 40
Special Characteristics: Short-stroke cylinder, single-acting - Non-contact position sensing - Piston ro…
Product Specific Download:
CAD

Price per piece

€169.37*

on request (phone / email)

Details
ZHO-SZ6016/25
PA67300-0025

Short-stroke cylinder, double-acting - non-contact position sensing

ZHO-SZ6016/25
piston rod thread: M4 piston rod Ø: 8 piston Ø: 16
Special Characteristics: Short-stroke cylinder, double-acting - non-contact position sensing Piston Ø:…
Product Specific Download:
Catalogue

Price per piece

€119.24*

Available

ZHO-SZ6063/10
PA61100-0010

Short-stroke cylinder, double-acting - non-contact position sensing

ZHO-SZ6063/10
piston rod thread: M12x1.75 piston rod Ø: 20 piston Ø: 63
Special Characteristics: Short-stroke cylinder, double-acting - non-contact position sensing Piston Ø:…
Product Specific Download:
Catalogue

Price per piece

€282.48*

Delivery date upon request

ZHO-SZ6080/10
PA62090-0010

Short-stroke cylinder, double-acting - non-contact position sensing

ZHO-SZ6080/10
piston rod Ø: 25 piston Ø: 80 series: SZ
Special Characteristics: Short-stroke cylinder, double-acting - non-contact position sensing Piston Ø:…
Product Specific Download:
Catalogue

Price per piece

€274.61*

on request (phone / email)

Details
ZHO-SZ6016/5
PA67300-0005

Short-stroke cylinder, double-acting - non-contact position sensing

ZHO-SZ6016/5
piston rod thread: M4 piston rod Ø: 8 piston Ø: 16
Special Characteristics: Short-stroke cylinder, double-acting - non-contact position sensing Piston Ø:…
Product Specific Download:
Catalogue

Price per piece

€106.24*

on request (phone / email)

Details
ZHO-SZ6050/80
PA60150-0080

Short-stroke cylinder, double-acting - non-contact position sensing

ZHO-SZ6050/80
piston rod thread: M10x1.5 piston rod Ø: 20 piston Ø: 50
Special Characteristics: Short-stroke cylinder, double-acting - non-contact position sensing Piston Ø:…
Product Specific Download:
Catalogue

Price per piece

€279.85*

on request (phone / email)

Details
ZHO-SZ6032/80
PA58150-0080

Short-stroke cylinder, double-acting - non-contact position sensing

ZHO-SZ6032/80
piston rod thread: M8 piston rod Ø: 12 piston Ø: 32
Special Characteristics: Short-stroke cylinder, double-acting - non-contact position sensing Piston Ø:…
Product Specific Download:
Catalogue

Price per piece

€212.92*

Delivery date upon request

ZHO-SZ7100/10
PA63010-0010

Short-stroke cylinder, single-acting - Non-contact position sensing - Piston rod retracted

ZHO-SZ7100/10
piston rod thread: M20x2,5 piston rod Ø: 32 piston Ø: 100
Special Characteristics: Short-stroke cylinder, single-acting - Non-contact position sensing - Piston ro…
Product Specific Download:
CAD

Price per piece

€271.76*

on request (phone / email)

Details
ZHO-SZ6040/80
PA59060-0080

Short-stroke cylinder, double-acting - non-contact position sensing

ZHO-SZ6040/80
piston rod thread: M8 piston rod Ø: 16 piston Ø: 40
Special Characteristics: Short-stroke cylinder, double-acting - non-contact position sensing Piston Ø:…
Product Specific Download:
Catalogue

Price per piece

€254.01*

Delivery date upon request

ZHO-SZ7040/10
PA59070-0010

Short-stroke cylinder, single-acting - Non-contact position sensing - Piston rod retracted

ZHO-SZ7040/10
piston rod thread: M8 piston rod Ø: 16 piston Ø: 40
Special Characteristics: Short-stroke cylinder, single-acting - Non-contact position sensing - Piston ro…
Product Specific Download:
CAD

Price per piece

€53.73*

on request (phone / email)

Details
ZHO-SZ6050/10
PA60150-0010

Short-stroke cylinder, double-acting - non-contact position sensing

ZHO-SZ6050/10
piston rod thread: M10x1.5 piston rod Ø: 20 piston Ø: 50
Special Characteristics: Short-stroke cylinder, double-acting - non-contact position sensing Piston Ø:…
Product Specific Download:
Catalogue

Price per piece

€235.72*

Delivery date upon request

ZHO-SZ6040/25
PA59060-0025

Short-stroke cylinder, double-acting - non-contact position sensing

ZHO-SZ6040/25
piston rod thread: M8 piston rod Ø: 16 piston Ø: 40
Special Characteristics: Short-stroke cylinder, double-acting - non-contact position sensing Piston Ø:…
Product Specific Download:
Catalogue

Price per piece

€199.72*

Delivery date upon request

ZHO-SZ6016/10
PA67300-0010

Short-stroke cylinder, double-acting - non-contact position sensing

ZHO-SZ6016/10
piston rod thread: M4 piston rod Ø: 8 piston Ø: 16
Special Characteristics: Short-stroke cylinder, double-acting - non-contact position sensing Piston Ø:…
Product Specific Download:
Catalogue

Price per piece

€108.01*

on request (phone / email)

Details
ZHO-SZ7050/10
PA60140-0010

Short-stroke cylinder, single-acting - Non-contact position sensing - Piston rod retracted

ZHO-SZ7050/10
piston rod thread: M10x1.5 piston rod Ø: 20 piston Ø: 50
Special Characteristics: Short-stroke cylinder, single-acting - Non-contact position sensing - Piston ro…
Product Specific Download:
CAD

Price per piece

€219.60*

on request (phone / email)

Details
ZHO-SZ6040/10
PA59060-0010

short stroke cylinder, double acting, contactless position detection

ZHO-SZ6040/10
piston rod thread: M8 piston rod Ø: 16 piston Ø: 40
Special Characteristics: short stroke cylinder, double acting, contactless position detection piston-Ø:…
Product Specific Download:
Catalogue

Price per piece

€185.13*

Delivery date upon request

ZHO-SZ6020/5
PA67310-0005

Short-stroke cylinder, double-acting - non-contact position sensing

ZHO-SZ6020/5
piston rod thread: M5 piston rod Ø: 10 piston Ø: 20
Special Characteristics: Short-stroke cylinder, double-acting - non-contact position sensing Piston Ø:…
Product Specific Download:
Catalogue

Price per piece

€116.50*

Delivery date upon request

ZHO-SZ7016/25
PA67340-0025

Short-stroke cylinder, single-acting - Non-contact position sensing - Piston rod retracted

ZHO-SZ7016/25
piston rod thread: M4 piston rod Ø: 8 piston Ø: 16
Special Characteristics: Short-stroke cylinder, single-acting - Non-contact position sensing - Piston ro…
Product Specific Download:
CAD

Price per piece

€159.75*

Delivery date upon request

ZHO-SZ6040/05
PA59060-0005

Short-stroke cylinder, double-acting - non-contact position sensing

ZHO-SZ6040/05
piston rod thread: M8 piston rod Ø: 16 piston Ø: 40
Special Characteristics: Short-stroke cylinder, double-acting - non-contact position sensing Piston Ø:…
Product Specific Download:
Catalogue

Price per piece

€171.19*

on request (phone / email)

Details
ZHO-SZ7012/10
PA67330-0010

Short-stroke cylinder, single-acting - Non-contact position sensing - Piston rod retracted

ZHO-SZ7012/10
piston rod thread: M3 piston rod Ø: 6 piston Ø: 12
Special Characteristics: Short-stroke cylinder, single-acting - Non-contact position sensing - Piston ro…
Product Specific Download:
CAD

Price per piece

€181.62*

on request (phone / email)

Details
ZHO-SZ7032/25
PA58160-0025

Short-stroke cylinder, single-acting - Non-contact position sensing - Piston rod retracted

ZHO-SZ7032/25
piston rod thread: M8 piston rod Ø: 12 piston Ø: 32
Special Characteristics: Short-stroke cylinder, single-acting - Non-contact position sensing - Piston ro…
Product Specific Download:
Catalogue

Price per piece

€189.92*

Delivery date upon request
