Series B60 - Push-in fittings

The push-in fittings of the B60 series in nickel-plated brass design are provided with the special TEA+ surface finish. This high-quality coating gives the components very high corrosion resistance in both acidic and alkaline environments. Thanks to the FKM seals, they are suitable for use with a wide range of different media. They also have comprehensive certifications for the food sector. The wide operating pressure and temperature range opens up a wide range of possible applications. The bare brass version is made entirely from brass with a lead content of less than 0.1%. It has additional certifications for the drinking water sector and - unlike the nickel-plated version - is fitted with seals made of peroxide cross-linked EPDM.

to product variants

material	Nickel-plated brass (MSv) and brass (MS)
thread	metric ISO 262 BSP parallel UNI-ISO228 with O-ring
operating pressure	max. 20 bar Vacuum up to 95%
temperature	-20 °C to + 150°C
sealing surface	O-ring inserted in the housing
hose material	PA = polyamide, calibrated outside diameter PE = Polyethylene, calibrated outside diameter FEP, calibrated outside diameter PTFE, calibrated outside diameter
hose outside Ø	Nickel-plated brass: 4 mm to 12 mm Brass: 4 mm to 8 mm
tolerance	4 to 8 mm +/- 0,10 mm 10 & 12 mm +/-0,15 mm
medium	Compressed air, vacuum, water and media that are compatible with the materials used.
field of application	typical pneumatic applications
Certificates	Brass and nickel-plated brass: NSF/ANSI 169, EC1935/2004, ICIM food contact materials, REACH-compliant, RoHS3-compliant Brass additionally: ICIM water contact materials, D.M. 174/2004

BT-GE-MSv - Straight screw-in fitting

14 articles

BT-GA-MSv - Straight screw-on fitting

6 articles

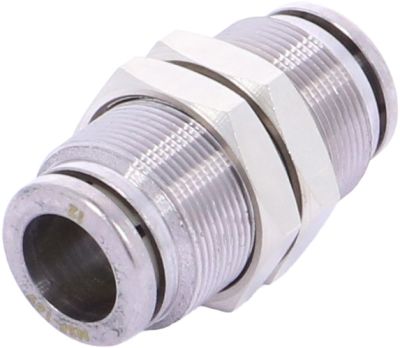

BT-GSV-MSv - Straight bulkhead connector

5 articles

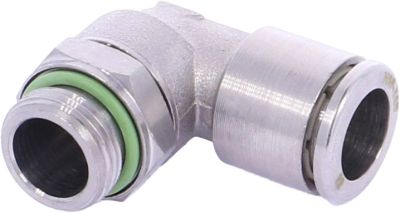

BT-WEd-MSv - Elbow screw-in fitting, swivelling

14 articles

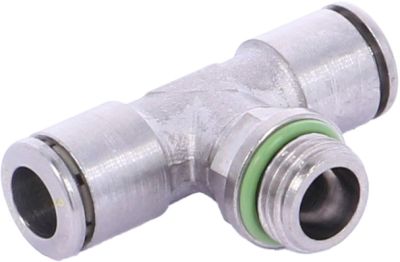

BT-TEd-MSv - T-screw-in fitting, swivelling

5 articles

BT-GES-MSv - Straight screw-in steam

8 articles

BT-GV-MSv - Straight connector

5 articles

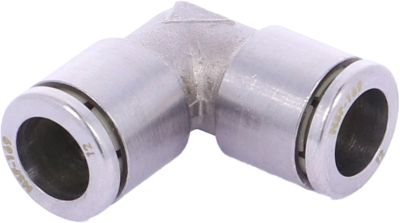

BT-WV-MSv - Elbow connector

5 articles

BT-TV-MSv - T-connector

5 articles

BT-GRZ-MSv - Straight reducing stem

4 articles

BT-GE-MS - Straight screw-in fitting

8 articles

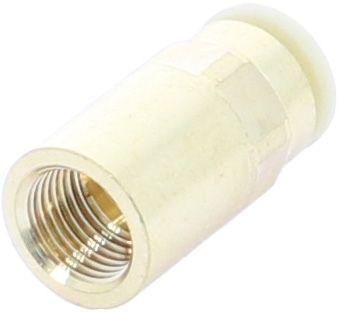

BT-GA-MS - Straight screw-on fitting

5 articles

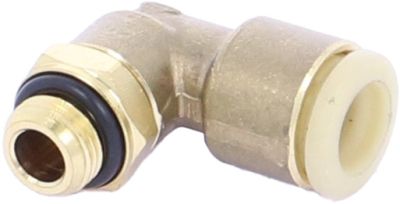

BT-WEd-MS - Elbow screw-in fitting, adjustable while pressureless

10 articles

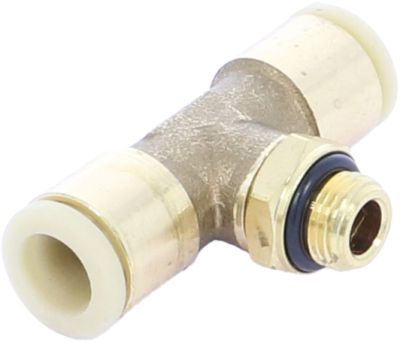

BT-TEd-MS - T-screw-in fitting, adjustable while pressureless

6 articles

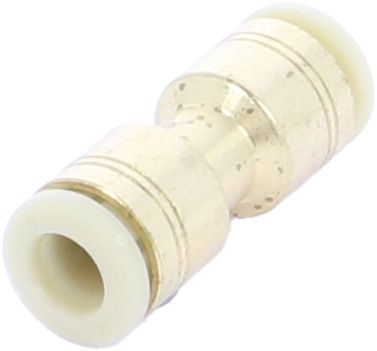

BT-GV-MS - Straight connector

3 articles

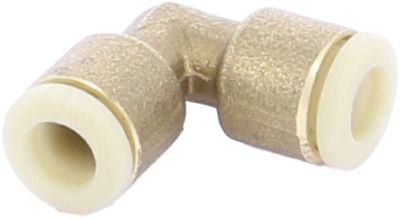

BT-WV-MS - Elbow connector

3 articles

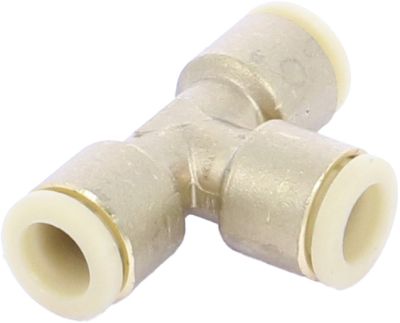

BT-TV-MS - T-connector

3 articles

03042045

Straight connector

BT-GV-4-MS

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass max. operating pressure: 20

Special Characteristics: Straight connector Hose Ø: 4 mm Material : Brass with less than 0.1% lead con…

Product Specific Download:
CAD

Price per piece

€4.80*

Subscription

Available, delivery time: 1-3 days

03042050

Elbow connector

BT-WV-4-MS

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass max. operating pressure: 20

Special Characteristics: Elbow connector Hose Ø: 4 mm Material : Brass with less than 0.1% lead conten…

Product Specific Download:
CAD

Price per piece

€6.30*

Subscription

Available, delivery time: 1-3 days

03042150

Straight connector

BT-GV-4-MSv

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass nickel-plated max. operating pressure: 20

Special Characteristics: Straight connector Hose Ø: 4 mm Material : Nickel-plated brass, TEA+ coating…

Product Specific Download:
CAD

Price per piece

€4.00*

Subscription

Available, delivery time: 1-3 days

03042160

Straight bulkhead connector

BT-GSV-4-MSv

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass nickel-plated max. operating pressure: 20

Special Characteristics: Straight bulkhead connector Hose Ø: 4 mm Material : Nickel-plated brass, TEA+…

Product Specific Download:
CAD

Price per piece

€5.60*

Subscription

Available, delivery time: 1-3 days

03042170

Elbow connector

BT-WV-4-MSv

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass nickel-plated max. operating pressure: 20

Special Characteristics: Elbow connector Hose Ø: 4 mm Material : Nickel-plated brass, TEA+ coating Op…

Product Specific Download:
CAD

Price per piece

€4.41*

Subscription

Available, delivery time: 1-3 days

03042000

Straight screw-in fitting

BT-GE-4-M5-MS

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass max. operating pressure: 20

Special Characteristics: Straight screw-in fitting Hose Ø: 4 mm Thread: M5 Material : Brass with less…

Product Specific Download:
CAD

Price per piece

€3.90*

Subscription

Available, delivery time: 1-3 days

03042020

Elbow screw-in fitting, adjustable when pressureless

BT-WEd-4-M5-MS

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass max. operating pressure: 20

Special Characteristics: Elbow screw-in fitting, adjustable when pressureless Hose Ø: 4 mm Thread: M5…

Product Specific Download:
CAD

Price per piece

€7.10*

Subscription

Available, delivery time: 1-3 days

03042102

Straight screw-in fitting

BT-GE-4-M5-MSv

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass nickel-plated max. operating pressure: 20

Special Characteristics: Straight screw-in fitting Hose Ø: 4 mm Thread: M5 Material : Nickel-plated b…

Product Specific Download:
CAD

Price per piece

€2.30*

Subscription

Available, delivery time: 1-3 days

03042127

Elbow screw-in fitting, adjustable when pressureless

BT-WEd-4-M5-MSv

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass nickel-plated max. operating pressure: 20

Special Characteristics: Elbow screw-in fitting, adjustable when pressureless Hose Ø: 4 mm Thread: M5…

Product Specific Download:
CAD

Price per piece

€4.00*

Subscription

Available, delivery time: 1-3 days

03042001

Straight screw-in fitting

BT-GE-4-1/8-MS

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass max. operating pressure: 20

Special Characteristics: Straight screw-in fitting Hose Ø: 4 mm Thread:G1/8" Material : Brass with le…

Price per piece

€4.30*

Subscription

Available, delivery time: 1-3 days

03042010

Straight screw-on fitting

BT-GA-4-1/8-MS

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass max. operating pressure: 20

Special Characteristics: Straight screw-on fitting Hose Ø: 4 mm Thread:G1/8" Material : Brass with le…

Product Specific Download:
CAD

Price per piece

€4.20*

Subscription

Available, delivery time: 1-3 days

03042021

Elbow screw-in fitting, adjustable when pressureless

BT-WEd-4-1/8-MS

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass max. operating pressure: 20

Special Characteristics: Elbow screw-in fitting, adjustable when pressureless Hose Ø: 4 mm Thread: G1/…

Product Specific Download:
CAD

Price per piece

€6.80*

Subscription

Available, delivery time: 1-3 days

03042035

T-screw-in fitting, adjustable when pressureless

BT-TEd-4-1/8-MS

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass max. operating pressure: 20

Special Characteristics: T-screw-in fitting, adjustable when pressureless Hose Ø: 4 mm Thread: G1/8"…

Product Specific Download:
CAD

Price per piece

€10.20*

Subscription

Available, delivery time: 1-3 days

03042100

Straight screw-in fitting

BT-GE-4-1/8-MSv

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass nickel-plated max. operating pressure: 20

Special Characteristics: Straight screw-in fitting Hose Ø: 4 mm Thread: G1/8" Material : Nickel-plate…

Product Specific Download:
CAD

Price per piece

€2.30*

Subscription

Available, delivery time: 1-3 days

03042115

Straight screw-on fitting

BT-GA-4-1/8-MSv

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass nickel-plated max. operating pressure: 20

Special Characteristics: Straight screw-on fitting Hose Ø: 4 mm Thread: G1/4" Material : Nickel-plate…

Product Specific Download:
CAD

Price per piece

€3.50*

Subscription

Available, delivery time: 1-3 days

03042125

Elbow screw-in fitting, adjustable when pressureless

BT-WEd-4-1/8-MSv

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass nickel-plated max. operating pressure: 20

Special Characteristics: Elbow screw-in fitting, adjustable when pressureless Hose Ø: 4 mm Thread: G1/…

Product Specific Download:
CAD

Price per piece

€4.10*

Subscription

Available, delivery time: 1-3 days

03042140

T-screw-in fitting, adjustable when pressureless

BT-TEd-4-1/8-MSv

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass nickel-plated max. operating pressure: 20

Special Characteristics: T-screw-in fitting, adjustable when pressureless Hose Ø: 4 mm Thread: G1/8"…

Product Specific Download:
CAD

Price per piece

€6.40*

Subscription

Available, delivery time: 1-3 days

03042180

Straight screw-in stem

BT-GES-4-1/8-MSv

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass nickel-plated max. operating pressure: 20

Special Characteristics: Straight screw-in stem Hose Ø: 4 mm Thread: G1/8" Material : Nickel-plated b…

Product Specific Download:
CAD

Price per piece

€2.10*

Subscription

Available, delivery time: 1-3 days

03042022

Elbow screw-in fitting, adjustable when pressureless

BT-WEd-4-1/4-MS

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass max. operating pressure: 20

Special Characteristics: Elbow screw-in fitting, adjustable when pressureless Hose Ø: 4 mm Thread: G1/…

Price per piece

€7.10*

Subscription

Available, delivery time: 1-3 days

03042101

Straight screw-in fitting

BT-GE-4-1/4-MSv

hose dimension: 4.3/3, 4/2.7, 4/2.5, 4/2 material: brass nickel-plated max. operating pressure: 20

Special Characteristics: Straight screw-in fitting Hose Ø: 4 mm Thread: G1/4" Material : Nickel-plate…

Product Specific Download:
CAD

Price per piece

€2.60*

Subscription

Available, delivery time: 1-3 days
